LED Driver Series >

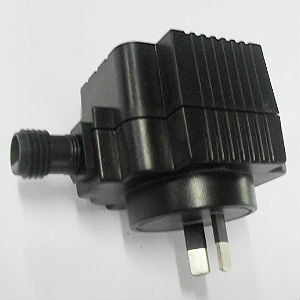

SA8S Series
-
Dimension : 52(L)*47.5(W)*37.5(H)mm(Tolerance as drawing)
-
SA8S-050-1000
Features:
- Input Voltage: 100-240Vac
- Input Range Voltage: 90-264Vac
- Input Frequency: 50-60Hz
- Input Range Frequency: 47-63Hz
- MTBF≧ 100,000 hrs to MIL-HDBK-217F
- Input Current: 0.15 Amp. rms. at 100 Vac
- SHORT CIRCUIT PROTECTION : 5 W Max. at 100~240 Vac 50/60 Hz. Max. load.
- OVER CURRENT PROTECTION : 0.5 A Max. at 100~240 Vac 50/60 Hz. Max. load.
Safety & EMC Standard :
EN61347-1,EN61347-2-13,EN55015,EN61000-3-2,EN61000-3-3,EN61547
