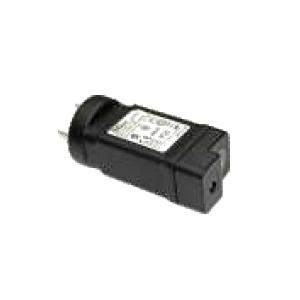

SA9S Series

Dimension :85( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features ( Single Output Steady On )
SA9A-3.6 / 6 /8.4 / 10.8 / 13 Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S Series( AU plug ) >

SA9S(T) Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Timing Controller )
SA9S-3.6 / 6 /8.4 / 10.8 / 13 Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S Series( AU plug ) >

SA9S(POT) Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Photocell And Timing Controller )
SA9S-3.6 / 6 /8.4 / 10.8 / 13 POT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
POT=Build Photocell Controller And Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S Series( AU plug ) >

SA9S(M2T) Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional Controller And Timing Controller )
SA9S-3.6 / 6 /8.4 / 10.8 / 13 M2T Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2T=Build 8 Functional Controller And Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36M2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S Series( AU plug ) >

SA9S(M2POT) Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional Controller And Photocell Controller+ Timing Controller )
SA9S-3.6 / 6 /8.4 / 10.8 / 13 M2POT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2PO=Build 8 Functional Controller And Photocell ontroller T=Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36M2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S Series( AU plug ) >

SA9S(M2IRT) Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional And Remote Controller+ Timing Controller )
SA9S-3.6 / 6 /8.4 / 10.8 / 13 M2IRT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2IRT=Build 8 Functional And Remote Controller .T=Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-12-09M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36M2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Add to Inquiry List

Review Inquiry List

Back
