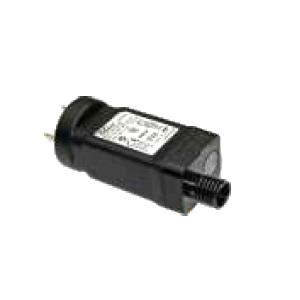

SA9S-W Series

Dimension :101( L )*40 ( W )*40 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features ( Single Output Steady On )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05 W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36W	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S-W(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S-W Series( AU plug ) >

SA9S-W(T) Series

Dimension :109( L )*40 ( W )*44( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Timing Controller )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36WT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S-W(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S-W Series( AU plug ) >

SA9S-W(POT) Series

Dimension :109( L )*40 ( W )*44 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Photocell And Timing Controller )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W POT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
POT=Build Photocell Controller And Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05 WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36WPOT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S-W(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S-W Series( AU plug ) >

SA9S-W(M2T) Series

Dimension :109( L )*40 ( W )*44 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional Controller And Timing Controller )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W M2T Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2T=Build 8 Functional Controller And Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12WP2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05 WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36WM2T	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S-W(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S-W Series( AU plug ) >

SA9S-W(M2POT) Series

Dimension :109( L )*40 ( W )*44 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional Controller And Photocell Controller+ Timing Controller )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W M2POT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2PO=Build 8 Functional Controller And Photocell ontroller T=Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12WP2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05 WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36WM2POT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Path : SA9S-W(T) Series > Our Product > LED Driver -new > SA9X Series > SA9S-W Series( AU plug ) >

SA9S-W(M2IRT) Series

Dimension :109( L )*40 ( W )*44 ( H )mm
SA9X Series Could be Added The Extra Function of '' 8 Flash Functional " ( M2 ), & '[ Photocell '' (PO), & '' Remote Controller '' ( IR ),&''Timing''( T ),&'' Memory '' ( M ),For the Customer choice

Features (Steady On+Build 8 Functional And Remote Controller+ Timing Controller )
SA9S-3.6W / 6W /8.4W / 10.8W / 13W M2IRT Series X=S ( S= AU plug )''W'' or blank to indicate IP level, ''W''=IP44,blank=IP20
M2IRT=Build 8 Functional And Remote Controller .T=Timing Controller.

High Efficiency,Compliance To Erp Directive
High Precision Constant Voltage And Current Regulation
Programmable CV And CC Regulation
Protection ;Open Circuit / Short Circuit / Over Voltage
Auto Restart After Fault Conditions Remove
100% Full Load Burn-In Test
SELV Equivalent
Suitable For X`max Lighting Applications / LED Lighting Applications
Comply IEC Safety And EMC Regulations
1 Years Warranty

Safty & EMC :
EN61347-1,EN61647-2-13,EN62384,EN55015,EN61000-3-2,EN61000-3-3,EN61547,IEC61000-4-2 / 3 / 4 /5 / 6 / 8 /11,

Please products below, and. click Add to Inquiry List for inquiry.

Model No.	Description	Intput Voltage	Output Voltage	Output Current	Output Wattage	Check
Model No. SA9S-3.6-4.5WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 4.5Vdc	Output Current : 0.8A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-06WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 0.6A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-12WP2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.3A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-24WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.15A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-31WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.12A	Output Wattage : 3.6W	Check :
Model No. SA9S-3.6-36WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.1A	Output Wattage : 3.6W	Check :
Model No. SA9S-05-05 WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1A	Output Wattage : 5W	Check :
Model No. SA9S-06-06WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1A	Output Wattage : 6W	Check :
Model No. SA9S-06-09WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 0.7A	Output Wattage : 6W	Check :
Model No. SA9S-06-12WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.5A	Output Wattage : 6W	Check :
Model No. SA9S-06-24WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.25A	Output Wattage : 6W	Check :
Model No. SA9S-06-31WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.194A	Output Wattage : 6W	Check :
Model No. SA9S-06-36WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.167A	Output Wattage : 6W	Check :
Model No. SA9S-7.5-05WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 5Vdc	Output Current : 1.5A	Output Wattage : 7.5W	Check :
Model No. SA9S-7.2-06WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 6Vdc	Output Current : 1.2A	Output Wattage : 7.2W	Check :
Model No. SA9S-8.4-12WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.7A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-24WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.35A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-31WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.27A	Output Wattage : 8.4W	Check :
Model No. SA9S-8.4-36WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.25A	Output Wattage : 8.4W	Check :
Model No. SA9S-09-09WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1A	Output Wattage : 9W	Check :
Model No. SA9S-10.8-12WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 0.9A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-24WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.45A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-31WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.35A	Output Wattage : 10.8W	Check :
Model No. SA9S-10.8-36WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.3A	Output Wattage : 10.8W	Check :
Model No. SA9S-13-09WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 9Vdc	Output Current : 1.3A	Output Wattage : 12W	Check :
Model No. SA9S-13-12WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 12Vdc	Output Current : 1.08A	Output Wattage : 13W	Check :
Model No. SA9S-13-24WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 24Vdc	Output Current : 0.54A	Output Wattage : 13W	Check :
Model No. SA9S-13-31WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 31Vdc	Output Current : 0.42A	Output Wattage : 13W	Check :
Model No. SA9S-13-36WM2IRT	Description : LED Driver	Intput Voltage : 220~240	Output Voltage : 36Vdc	Output Current : 0.36A	Output Wattage : 13W	Check :

Add to Inquiry List

Review Inquiry List

Back
